● The material of light shell is die-casting aluminum match a high-purity alumina, which can effectively prevent glare internal reflector. The surface treatment of the lamp to do pure polyester electrostatic spraying to effectively prevent corrosion.
● The material of the milky white decorative parts is aluminum, with embossing technology
● The light source is an LED module with a rated power of up to 30-60 watts, more watts can be customized. It can install one or two LED modules to achieve an average luminous efficiency of over 120 lm/w. Internationally brand drivers available for selection. Having excellent thermal radiation, optical, and electrical capabilities
● The lamp equip with a heat dissipation device on the top and outside of the lamp, which can effectively dissipate heat and ensure the service life of the light source. The entire lamp adopts stainless steel fasteners, which are not easy to corrode.

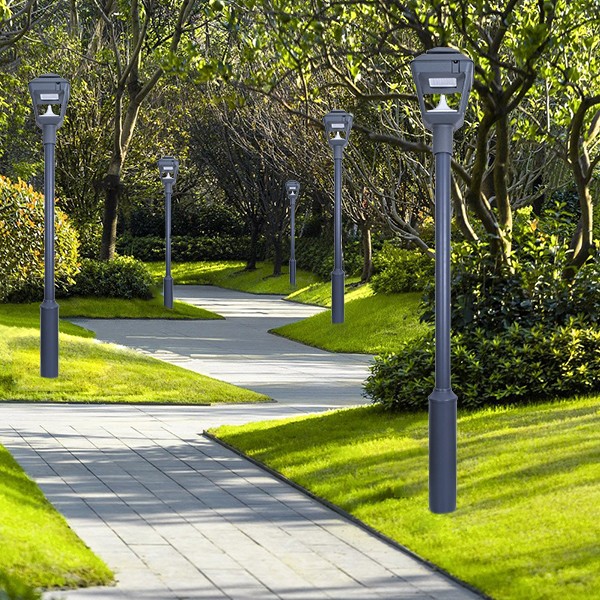

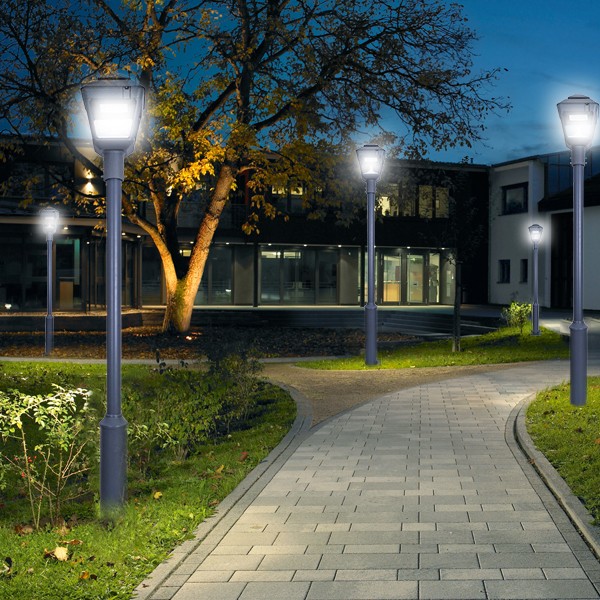

● It can use outdoor places such as squares, residential areas, parks, streets, gardens, parking lots, city walkways.
|
Product Code |
TYDT-5 |
|
Dimension |
Φ300mm*H490mm |
|
Housing Material |
High pressure die-casting aluminum |
|
Cover Material |
Aluminum |
|
Wattage |
30W- 60W |
|
Color temperature |
2700-6500K |
|
Luminous Flux |
3300LM/6600LM |
|
Input Voltage |
AC85-265V |
|
Frequency range |
50/60HZ |
|
Power factor |
PF> 0.9 |
|
Color Rendering Index |
> 70 |
|
Working Temperature |
-40℃-60℃ |
|
Working humidity |
10-90% |
|
Life Time |
50000 hours |
|
IP Rating |
IP66 |
|
IK |
IK09 |
|
Installation Spigot Size |
60mm 76mm |
|
Applicable Height |
3m -4m |
|
Packing |
310*310*500MM/ 1 unit |
|
Net weight(kgs) |
5.56 |
|
Gross Weight(kgs) |
6.1 |
In addition to these parameters, the TYDT-5 IP66 IK09 Light for back yard is also available in a range of colors to suit your style and preference. Whether you prefer a classic black or gray, or a more daring blue or yellow tint, here we can customize them to suit your needs.
